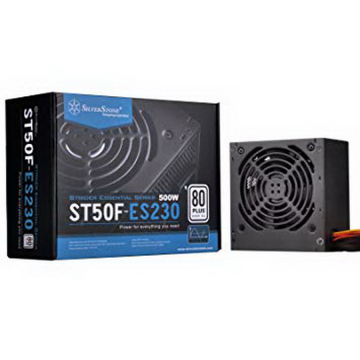

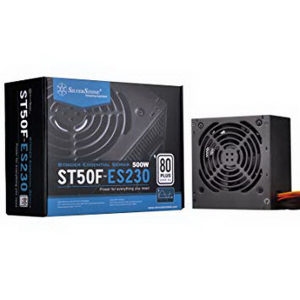

SILVERSTONE 500 WATT 80+ ST50F-ES230

OFF 13%
Kode : -
Berat : 2000 gram
Stok : Ready Stock
Kondisi : Baru
Kategori : Power Supply, True Power
Dilihat : 760 kali
Review : Belum ada review
Rp 715.000 Sebelum Rp 825.000
(OFF 13%) Hemat Rp 110.000
Tentukan Pilihan!

# SILVERSTONE 500 WATT 80+ ST50F-ES230

Berhasil ditambahkan ke keranjang belanja Anda
Lihat keranjang Anda
Lanjut Belanja
Checkout

Bagikan informasi tentang SILVERSTONE 500 WATT 80+ ST50F-ES230 kepada teman atau kerabat Anda.

Deskripsi SILVERSTONE 500 WATT 80+ ST50F-ES230

Model No.
SST-ST50F-ES230
Max. DC Output
500W
Power density
277W per liter
Load Range (V2.0)
+3.3V +5V +12V +5VSB -12V
Max.(Amps)
18A 17A 38A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Load Range (V1.0)
 +3.3V  +5V  +12V  +5VSB  -12V
Max.(Amps)
 24A  20A  34A  2.5A  0.3A
Peak (Amps)
 /  /  /  /  /
Min.(Amps)
 0.1A  0.2A  0.1A  0A  0A
Range (%)
 ±5%  ±5%  ±5%  ±5%  ±10%
Line Reg.(%)
 ±1%  ±1%  ±1%  ±1%  ±1%
Ripple(mVp-p)
 50mV  50mV  120mV  50mV  120mV
Combined +3.3V & +5V
110W (V2.0)
120W (V1.0)
Combined +12V
456W (V2.0)
400W (V1.0)
Input Voltage
180 ~ 264Vrms (V2.0)
207 ~ 253Vrms (V1.0)
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.9 at Full Load)
Efficiency
82%~85% @ 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under voltage protection (V1.0)
Connectors
V2.0
1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
2 x 8 / 6-Pin PCIE connector(”500mm / 150mm” x 2)
4 x SATA connector(”500mm / 150mm” x 2)
2 x 4-Pin Peripheral connector(500mm / 150mm / 150mm / 150mm)
1 x 4-Pin Peripheral connector(500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)

V1.0
1 x 24 Pin motherboard connector(450mm)
1 x 8-Pin EPS12V connector(550mm)
1 x 4-Pin ATX12V connector(550mm / 150mm)
2 x 8 / 6-Pin PCIE connector(400mm / 150mm)
6 x SATA connector(700mm / 150mm / 150mm)
3 x 4-Pin Peripheral connector (400mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(400mm / 150mm / 150mm / 150mm)

Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight
1.31kg (V2.0)
1.7kg (V1.0)
Certification
80 PLUS
Other
GPU Support list
Compatible with ATX12V v2.4
