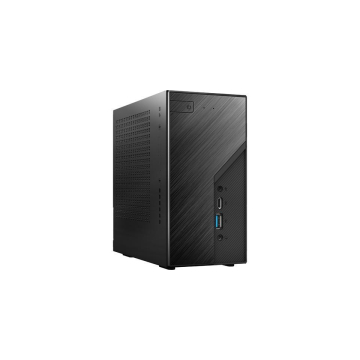

ASRock DESKMINI X300 Barebone System

CPU SupportedCPU Type Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
ChipsetNorth Bridge AMD X300
Memory SupportedMemory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported AMD Ryzen 4000 series – 3200MHz
AMD Ryzen 3000/2000 series – 2933MHz
Max Memory Supported 64GB
Expansion SlotsOther 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
StorageHard Drive Installed No Hard Drive
Serial ATA 2 x SATA 6.0Gb/s
M.2 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
1 x Ultra M.2 (2280) Slot
– PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
– PCIe Gen3 x2 (Athlon 2xxGE series APU)
SATA RAID RAID 0/1
AudioOnboard Audio Realtek ALC233
CommunicationsFirst LAN Realtek RTL8111H
Wireless LAN Intel AC-3168
Max LAN Speed 10/100/1000Mbps
Extension Bays2.5″ Internal bays 2
Front Panel PortsFront USB 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Front Audio Ports 1 x Head Phone with MIC Jack, 1 x MIC-In
Other Front Ports Connectors
– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 2 x 4-Pin fan connectors (CPU, SYS)
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header (4-Pin)
– 1 x Chassis Intrusion Header (2-Pin)
– 1 x Audio Header (4-Pin)
Back Panel PortsVGA 1 x D-Sub
HDMI 1 x HDMI
DisplayPort 1 x DisplayPort
Rear USB 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A
RJ45 1
Physical SPECDimensions 6.10″ x 3.15″ x 6.10″
FeaturesFeatures AMD AM4 Socket CPU
– Renoir, Picasso, Raven Ridge, up to 65W
– Support MAX Height <= 46mm CPU Cooler

Supports Overclocking Option with X300

High-Speed DDR4-3200MHz Memory

Dual Ultra M.2 (NVMe)
– M2_1 M.2 (2280) – PCIe Gen3 x4
– M2_2 M.2 (2280) – PCIe Gen3 x2/x4

2 x 2.5″ SATA 6Gb Hard Drive

Supports RAID 0/1 function

HDMI, DisplayPort, D-Sub

M.2 For Wi-Fi Module

USB 3.2 Gen1 Type-C
PackagingPackage Contents Accessory
– 2 x SATA Data with Power Cable
– 1 x 120W/19V adapter
– 1 x Screws Pack
