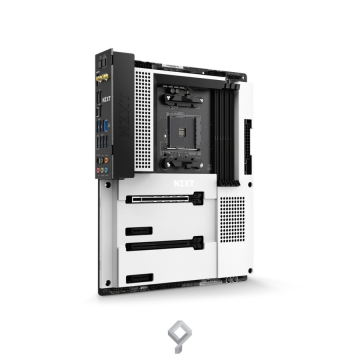

NZXT N7 B550 Motherboard AMD Chipset
| Stok | Habis |
| Kategori | AMD, Mainboard, Socket AM4 |
NZXT N7 B550 Motherboard AMD Chipset
CPU & Socket :
Supports AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors)*
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3200G
Chipset : AMD® B550
Memory : 4 x DIMM, Max. 128GB, DDR4
Expansion Slots
AMD Ryzen Series CPUs (Vermeer)
2 x PCIe x16 Slots (PCIe1: Gen4x16 mode; PCIe3: Gen3 x4 mode)
AMD Ryzen Series CPUs (Matisse)
2 x PCIe x16 Slots (PCIe1: Gen4x16 mode; PCIe3: Gen3 x4 mode)
AMD Ryzen Series CPUs (Renoir)
2 x PCIe x16 Slots (PCIe1: Gen3x16 mode; PCIe3: Gen3 x4 mode)
Supports AMD Quad CrossFireX™ and CrossFireX™
Supports NVMe SSD as boot disks
2 x PCIe 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
Integrated Graphics
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
Multi-GPU Support
Supports AMD 2-Way CrossFireX™ Technology
Storage
AMD® B550 Chipset
1 x M2_1: M.2 type 2242/2260/2280 (PCIe 4.0 x4 mode (with Matisse & Vermeer) or PCIe 3.0 x4 (with Renoir))
1 x M2_2: M.2 type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)
6 x SATA 6Gb/s ports*
Support RAID 0/1/5/10, NCQ, AHCI and Hot Plug
* M2_2 and SATA3_5_6 share lanes.
LAN
Realtek® RTL8125BG 2.5G LAN
Support Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Wireless
Intel Dual Band Wireless-AX210 Wi-Fi 6E
Wi-Fi 802.11 a/b/g/n/ax
Support dual band frequency 2.4/5GHz/6GHz
Support MU-MIMO
Bluetooth : Bluetooth V5.2
Audio: Realtek® ALC1220 Codec
USB Ports
3 x USB 3.2 Gen 2 ports (3 at back panel)
1 x USB 3.2 Gen 2 Type-C (at back panel)
1 x USB 3.2 Gen 2 front panel port (For USB Type-C)
8 x USB 3.2 Gen 1 ports (4 at back panel, 4 at mid-board)
8 x USB 2.0 ports (2 at back panel, 6 at mid-board)
Included Accessories
1 x User’s manual
4 x SATA cables (2 x 90 degree, 2 x 180 degree)
2 x Wireless antenna
2 x M.2 screws
Form Factor : ATX
Warranty 3 Years
NZXT N7 B550 Motherboard AMD Chipset
| Berat | 3000 gram |
| Kondisi | Baru |
| Dilihat | 3.150 kali |
| Diskusi | Belum ada komentar |
