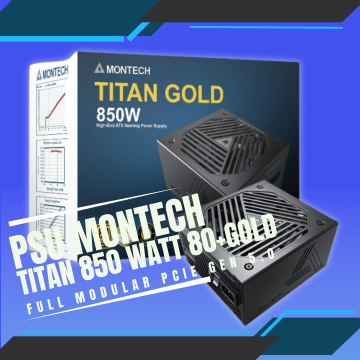

Montech TITAN 850 WATT 80 Plus Gold Full Modular PCIe Gen 5.0
Rp 2.450.000 Rp 2.550.000| Stok | Tersedia |
| Kategori | Power Supply, True Power |
Montech TITAN 850 WATT 80 Plus Gold Full Modular PCIe Gen 5.0
Garansi Resmi 10 Tahun by DTG
MONTECH TITAN GOLD 850W
Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.
Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Premium Components and High Performance
Equipped with 100% high-quality Japanese capacitors rated at 105°C, including dual bulk capacitors. While using advanced half bridge, LLC and Synchronous Rectifier (SR) technology, the TITAN GOLD has excellent signal stability and power efficiency. It also uses DC-to-DC conversion for tight voltage regulation of 1.8% and minimizes ripple noise to under 18mV, avoiding unbalanced power loads.
Ultra Quiet Certified
The TITAN GOLD is equipped with a quiet 135mm fluid dynamic bearing (FDB) fan with zero RPM mode until it reaches 40% loading. After which, the maximum noise level of the TITAN GOLD reaches 27 dBA at 1400 RPM.
TITAN GOLD received Cybenetics LAMBDA A- CERTIFICATION for independent testing and verification of the lower noise and higher efficiency of the power supply.
SPECIFICATIONS
Product Name
TITAN GOLD 850W
Warranty 10 Year
ATX Version
Intel ATX12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240Vac
Input Current
12A
Input Frequency
50-60Hz
Dimensions (LxBxH)
150x160x86mm
Fan Size
135mm ( FDB Fan )
Efficiency
90% Typically
Operating Temperature
0-45°C
Protections
OVP / OPP / OTP / SCP / OCP/ UVP
Regulatory
cTUVus / TUV / CB / CE / FCC / RoHS / BSMI
Connectors
M/B 20+4Pin
1
CPU 4+4Pin
2
PCIE 6+2
4
SATA
12
Molex 4Pin
4
12+4PCIe 5.0
1
AC INPUT
100-240Vac 50-60Hz 12A
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max. Output Current
22A
22A
70.8A
0.3A
3A
Max. Output Power
120W
850W
3.6W
15W
Total POWER
850W
Montech TITAN 850 WATT 80 Plus Gold Full Modular PCIe Gen 5.0
