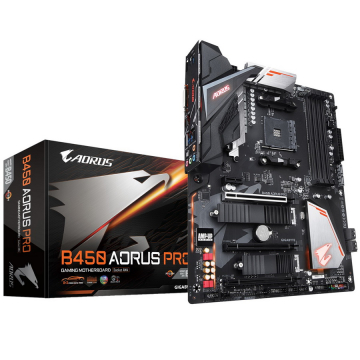

Gigabyte B450 AORUS PRO AMD Socket AM4

CPU

Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 2nd Generation processors AMD Ryzen with Radeon Vega Graphics processors AMD Ryzen 1st Generation processors
64-bit Support	Yes
Socket	AM4

Motherboard

Chipset Manufacturer	AMD
Northbridge	B450
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 4 x USB 3.0
RJ-45 Ports	1 x RJ-45
HDMI Port	1 x HDMI
Digital Port	1 x DVI-D
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connectors	2 x SMA Antenna

Internal I/O Connectors

Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan 1 x Water Cooling CPU fan 2 x System fans 1 x System fan/Water Cooling Pump
SATA Connectors	6 x SATA III
S/PDIF Connectors	1 x S/PDIF
USB Connectors	1 x USB 3.0 2 x USB 2.0
TPM Header	1 x TPM
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin ATX12V
Other Connectors	1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 1 x RGB LED header 1 x RGBW LED header 2 x Digital LED headers

Expansion

Number of PCI Express Slots

1 x PCI Express 3.0 x16
2 x PCI Express 2.0 x16 (@ x4, x1)
1 x PCI Express 2.0 x1

Memory

Memory Bus Speed	2933, 2667, 2400, 2133 MHz
Maximum RAM	64 GB
Memory Type	DDR4
Memory Slot	4 x DIMM

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1220

Network

Integrated Network	Intel GbE
Network Speeds Supported	10/100/1000 Mbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS 2 x Digital LED
Software Included (may be trial or restricted)	Norton Internet Security (OEM version) cFosSpeed
Drivers	Included
SLi/Crossfire Features	Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Physical

Form Factor	ATX Motherboard
Width	305 mm
Length	244 mm

Item Details

Manufacturer	Gigabyte
Manufacturer Code	B450 AORUS PRO
EAN	4719331803841
UPC	889523014363
Condition	New
