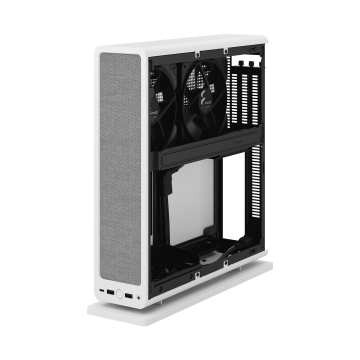

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
• Supports GPUs up to a length of 335 mm
• All panels are removable, enabling maximum accessibility
• PCIe 4.0 riser card included
Specifications
Dedicated 2.5″ drive mounts
4x included, 4x positions total
Expansion slots
3-slot
Front interface
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts
2x 120/140 mm and 3x 80 mm
Side fan
2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan
3x 80 mm (not included)
Cable routing space
13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock
Side panels
Captive thumbscrews
Side panels
Left side panel
Steel
Right side panel
Steel
Compatibility
Motherboard compatibility
Mini ITX
Power supply type
SFX, SFX-L
Side radiator
120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length
SFX-L
GPU max length
325 mm with SSD installed. 335 mm without SSD installed.
GPU max height
125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness
57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height
70 mm
Dimensions
Case dimensions
Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
Case dimensions w/o feet/protrusions/screws
355 x 95 x 375 mm
Net weight
4.3 kg
Package dimensions (LxWxH)
426 x 167 x 431 mm
Gross weight
5.5 kg
Volume
12.6 liter
Other
Package contents
Case, Accessory box, Manual
Fractal Design Ridge Mini ITX Case For PC White
