Beranda » Power Supply » FRACTAL DESIGN Ion+ 560W Platinum | 560W 80+ Platinum Fully Modular

click image to preview activate zoom

Diskon
4%

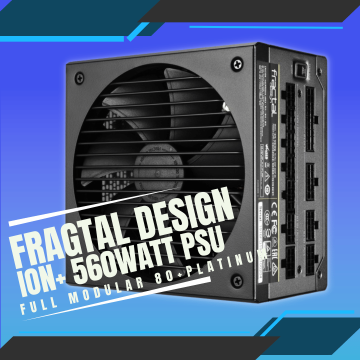

FRACTAL DESIGN Ion+ 560W Platinum | 560W 80+ Platinum Fully Modular

Rp 1.275.000 Rp 1.325.000

Hemat Rp 50.000

Stok	Tersedia
Kategori	Power Supply, True Power

Tentukan pilihan yang tersedia!

Pemesanan yang lebih cepat! Quick Order

Bagikan ke

FRACTAL DESIGN Ion+ 560W Platinum | 560W 80+ Platinum Fully Modular

80 PLUS® Certification
– Platinum

Modular cables
– Fully modular

Cable type
– Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire

Fan type
– Customized 140 mm FDB bearing Fractal Design Dynamic Series fan

Maximum operating temperature at full load
– 50°C

Semi-passive operation
– Yes, user selectable (Zero RPM)

Sleep State Compliance
– C6/C7

Warranty
– 10 years by EMD

Capacitors
– Japanese

Protection features
– Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection

Approvals & Certifications
– CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

Life expectancy (MTBF) at max output load
– 100,000 hours

Input voltage
– 100-240V AC

Input frequency
– 50-60 Hz

Input current
– 10A/5A

Number of 12V rails
– 1

PSU specification compliance
– ATX12V 2.4 / EPS12V 2.92

Standby efficiency
– ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)

Unit measurements
– 150 x 150 x 86 mm

Unit weight (unit only)
– 1.61 kg

Connectors
ATX 24-pin
– 1

ATX12V 4+4 pin / EPS12V 8-pin
– 1

PCIe 6+2 pin
– 4

SATA
– 6

Peripheral
– 4

Cable configuration (length between connectors)
ATX 24-pin
– 600 mm

ATX12V 4+4 pin
– 700 mm

EPS12V 8-pin
– N/A

PCIe 6+2 pin
– 550+120 mm x2

SATA
– 400+120+120+120 mm & 650+120 mm

Peripheral
– 400+120+120+120

DC output
3.3 V
– 20 A

5 V
– 20 A

3.3 V and 5 V combined
– 110 W

12 V
– 46.6 A

(-12 V)
– 0.3 A

5 V Standby (+5 Vsb)
– 3 A

Total Power
– 560 W

Package content
– Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual

Package dimensions (W x H x D)
– 325 x 110 x 210 mm

Package weight
– 2.6 kg

FRACTAL DESIGN Ion+ 560W Platinum | 560W 80+ Platinum Fully Modular
