Beranda » Mainboard » AMD » ASUS TUF GAMING B550-PLUS WIFI AMD B550 Ryzen AM4 Full ATX
Graphics
– 1 x DisplayPort 1.2
– 1 x HDMITM 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
– 1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
– 1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
– 1 x PCIe 3.0 x16 slot (supports x4 mode)*
– 3 x PCIe 3.0 x1 slot*
*PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
**Support PCIe bifurcation for RAID on CPU function.
Storage
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
– M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
– 6 x SATA 6Gb/s ports
– Support Raid 0, 1, 10
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
Wireless & Bluetooth
– 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
– 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
– Supports 2.4/5GHz frequency band
– Bluetooth v5.2*
*Bluetooth v5.2 function will be ready in Windows 11 or later.
Form Factor
– ATX
– 30.5cm x 24.4cm

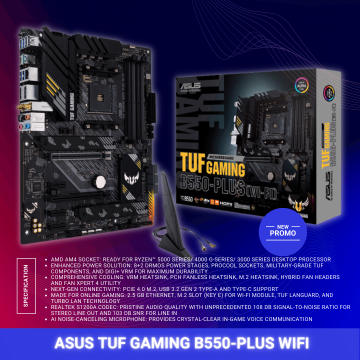

ASUS TUF GAMING B550-PLUS WIFI AMD B550 Ryzen AM4 Full ATX
Berat
1800 gram
Kondisi
Baru
Dilihat
924 kali
Diskusi
Belum ada komentar
Belum ada komentar, buka diskusi dengan komentar Anda.
HDMI® VGA DisplayPort BIOS FlashBack™ button 1 x PS/2 2 x USB 3.2 Gen 1 (Type-A) 4 x USB 2.0 (Type-A) Realtek 2.5 Gb Ethernet 2 x USB 3.2 Gen 2 (Type-A) 3 x Audio Jacks Expansion Slots b” 1 x PCIe 4.0 x16 (max @x16 mode) SafeSlot Core+ b” 2 x PCIe 4.0 x16… selengkapnya
